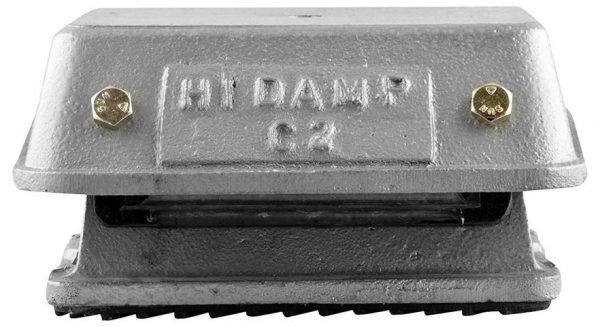

HDC2
HDC2

HD C2
HD C2

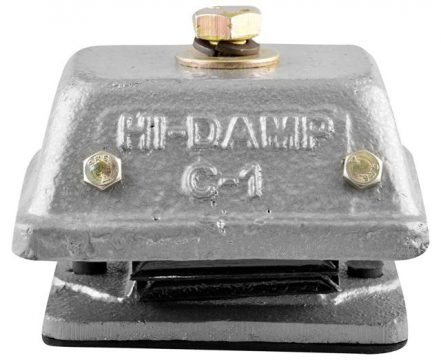

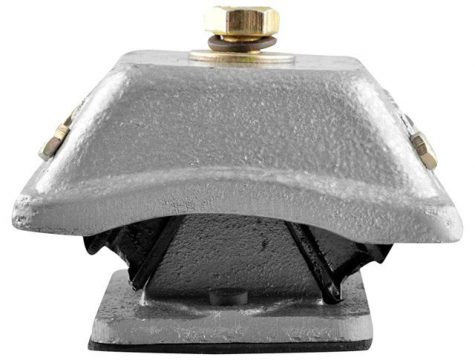

HDC1
HDC1

HDC1
HDC1

Cushy Foot HDC SERIES

Hidamp Cushy Foot series is has two flat sandwich mountings arranged in VEE formation/ Shear for ideal load/redirection attributes along with casting body and bottom pads which as a result gives it a special advantage of having the stiffness in two perpendicular directions.

Therefore It ideally suits big generators, blowers and pumps. It is also available for different load conditions ranging From 75 Kgs to 1600 Kgs.

The Mountings are protected against Oil, Physical & Mechanical Damages. Hidamp Cushy Foot Mounts give insulation & reduces transmission of Vibrations, Structure Borne Noise & Shock from a wide range of Rotating and Reciprocating Machinery.

These mounts have very low natural frequencies and possess good lateral stability.

They are available in in different Types of Rubber depending on application such as Natural Rubber, NBR, NEOPRENE Etc



Industry Processes

.



Cushy Foot  Models

.



MODEL

LOAD

A

B

C

D

E

F

G

H

KG /MOUNT

HD C1

75-250

120

125

80

81

110

85

11

1/2″

HD C2

250-1250

202

225

110

146

205

165

18

5/8″

HD C3

100-450

146

168

9

123

155

127

14

1/2″
