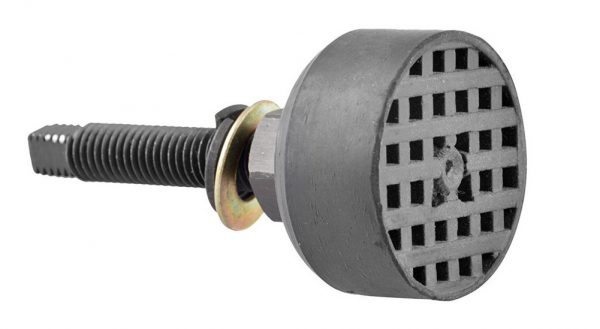

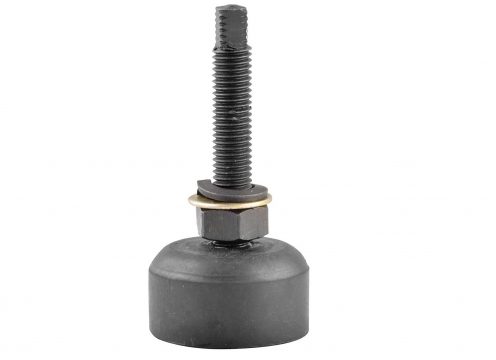

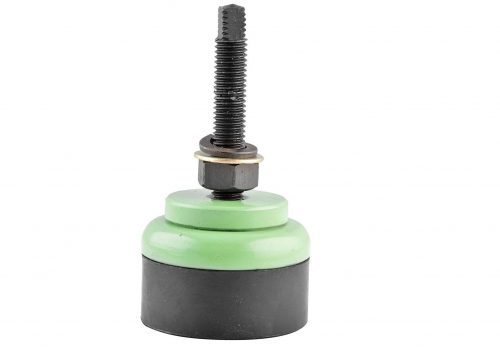

The HDG Series Machine Mounts can be easily selected for use with almost any type of machine tools, production machines or other process equipments. With its excellent resilient properties and damping characteristics, it works at its best between 16 to 25 Hz of nominal natural frequency.
These Machine Mounts Consist of Cast Iron Components coupled with Rubber Pads which Provide a Combination of High Compressive Strength and Efficient Vibration Damping ,making it the Most Common Choice for most of the Industrial Machinery readily available in the Market.
These Machine Mounts are also having the Level Adjustable Feature upto a Limit Depending on its capacity to enable Height Levelling of Machines on Uneven Surfaces.
Industry Processes
.
- LATHES
- MILLING MACHINES
- PRESS
- DRILLING MACHINE
- PEDESTAL GRINDERS
- GENERATORS
- HYDRAULIC PRESSES
- RICE SORTING MACHINES
- COMPRESSORS
Machine Mounts Models
.
|
Model |
Load (Kgs)
|
|||||||
|
Type A |
Type B |
Type C |
Type D |
|||||
|
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
|
|
HDG 100 HDG 200 HDG 400 HDG 600 HDG 800 HDG 1000 HDG 1200 HDG 1600 HDG 2000 HDG 2500 |
50 100 150 350 400 750 600 1200 1600 1900 |
75 150 300 600 700 1000 1100 1600 2000 2500 |
35 70 115 300 300 675 450 1000 1400 1750 |
50 100 225 500 500 825 750 1300 1750 2270 |
30 60 85 225 225 570 300 900 1250 1675 |
40 75 175 440 400 660 600 1100 1625 2125 |
20 40 65 140 175 500 275 800 1150 1450 |
30 50 125 275 300 600 450 1000 1300 1850 |
|
HDG 5000 |
|
|||||||
A, B, C & D denote for various rubber hardness values for which, You can mention your required hardness during Enquiry. eg. HDG 200 – A.
