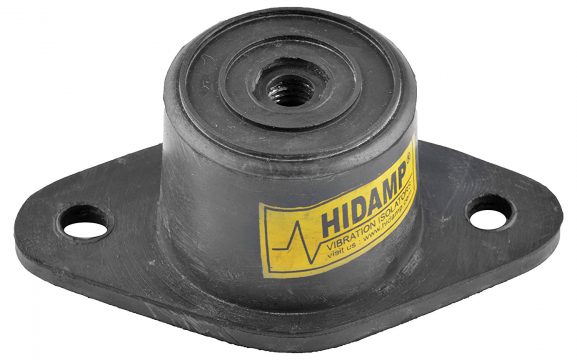

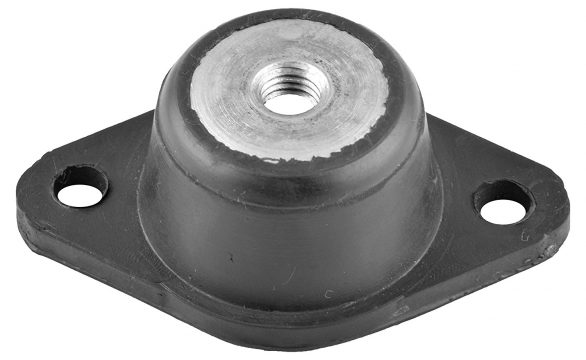

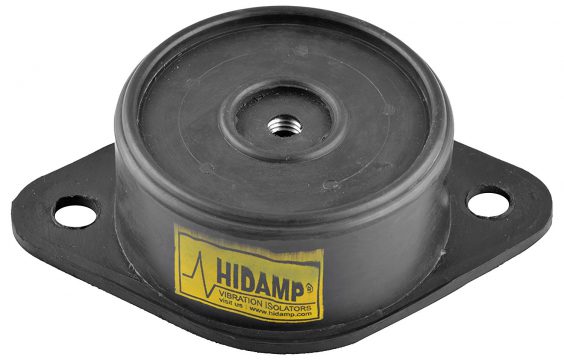

HDRH SERIES-Rubber Mount
Hidamp RH Series Rubber Mounts are best suited for effective isolation of noise and vibration in Diesel engines, Generators, A/C units, General machinery, Amusement park equipment, Construction/Farm Equipment, Compressors and Motor Pumps and can be Utilized for Varied Applications with our Catalog of Rubber types for Different Parameters.
They Come In Various Sizes For Varying Load Capacities and Specifications. These Rubber Mounts hold Machinery to Designated Floor Plates to damp Horizontal Stroke and Radial Oscillation Generated by the same.
Industry Processes
.
- DIESEL ENGINES
- FANS
- PUMPS
- GENERATOR
- AIR CONDITIONERS
- TRAPEZE PIPES
- AMUSEMENT PARK EQUIPMENT
- GENERAL MACHINERY
- AIR COMPRESSORS
- MARINE BILGE PUMPS
RH SERIES Rubber Mount Models
.
MODEL |
LOAD |
H |
L |
W |
D |
A |
G |
K |
E |
KG /MOUNT |
|||||||||
HD RH-1 |
15-60 |
28 |
80 |
45 |
60 |
32 |
M 8 |
8.5 |
5 |
HD RH-2 |
60-150 |
32 |
100 |
61 |
75 |
45 |
M 10 |
8.5 |
5 |
HD RH-3 |
75-200 |
47 |
121 |
70 |
90 |
54 |
M 12 |
13 |
5 |
HD RH-4 |
125-500 |
62 |
141 |
86 |
115 |
70 |
M 12 |
12 |
5 |
HD RH-5 |
400-1200 |
47 |
164 |
110 |
126 |
98 |
M 12 |
14 |
5 |
HD RH-6 |
150-700 |
60 |
150 |
90 |
115 |
75 |
M 16 |
11 |
10 |
HD RH-7 |
100-400 |
48 |
132 |
75 |
104 |
61 |
M 12 |
13 |
10 |
HD RH-8 |
115-600 |
72 |
140 |
85 |
104 |
64 |
M 12 |
14 |
6 |
HD RH-9 |
600-1400 |
75 |
165 |
110 |
127 |
100 |
M12 |
14 |
6 |
