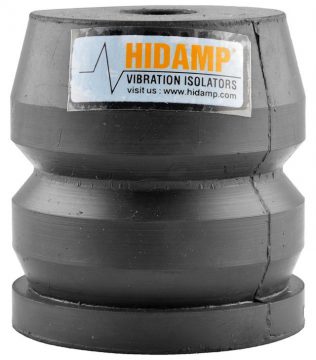

HDD 3
HDD 3

Hollow Spring Mounts

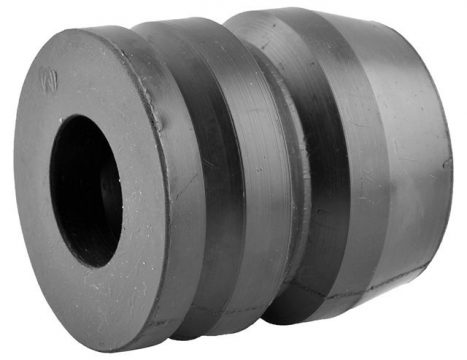

HDD3
HDD3

Hollow Spring Mounts

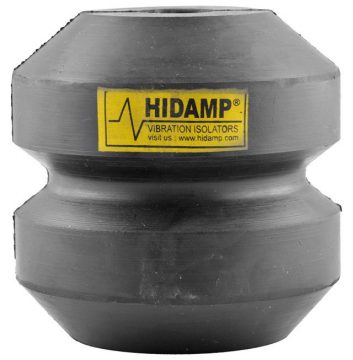

HDD 1
HDD 1

Hollow Spring Mounts

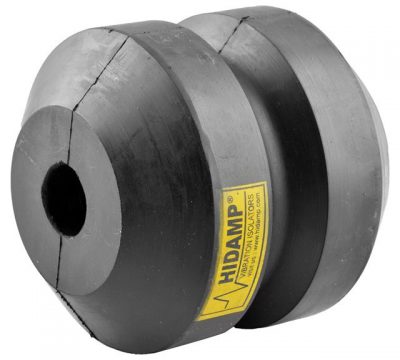

HDD 1
HDD 1

Hollow Spring Mounts

Hollow Spring Mounts-HDD SERIES

Hollow Spring Mounts are a natural rubber based Bi Lobed Air Bellow, with high deflection properties, used in low frequency application such as vibrators, compressors, and automobile suspension systems etc. These Hollow springs are maintenance-free and have excellent anti-friction Rubber properties. They have a high energy absorption capacity along with effective self-damping properties.



These Hollow Spring Mounts are used primarily to absorb single shocks or low frequency, periodic loads, Where With these Kinds of loads, the hollow spring is subjected to static loads. The entire travel of the spring is used to absorb dynamic loads and are designed for centric compressional loads and it is best to avoid shear or tensile loads.



Hollow Springs Mounts are widely used in vibrating tables, vibrating separators, centrifuges, ejectors for punch dies, heavy-duty machinery, etc.

These products are mainly used in compression on the horizontal axis and They can stand Load Deflections up to 60% of their height.

They can be Supplied and Customized according to the Customer’s Requirements and Specifications and are available in all Grades of Synthetic rubber Along with Natural Rubber, With the Latter being the Best for it Shock Absorption Properties.

You can check the Rubber Properties for your application here.



Industry Processes

.

HOLLOW SPRING MOUNTS MODEL

.

DESCRIPTION LOAD CAPACITY
HDD- 1 130-180
HDD-2 180-220
HDD3 90-130
